Villa/Family

Introduction

For villas, as many rooms and many obstructions, it cut down the wireless signal if just one wireless router; Then the throughput will be weakened if use wireless repeater to extend the wireless signal. Therefore we provide a WLAN solution which can supply most stable, best Internet experience and full wireless coverage for villas.

Requirement Analysis

1. With PoE power, no wire outside, perfect to integrated into existing decoration
2. Reliable and stable performance, supply full wireless coverage to each corner, provide the ultimate internet experience.
3. High extendibility, easy to increase the wireless AP if weak signal, flexible and convenient.
4. The device with smart router, PoE switch and WLAN controller functions, provide Internet, power and management for connected wireless AP, simple to do the maintenance.

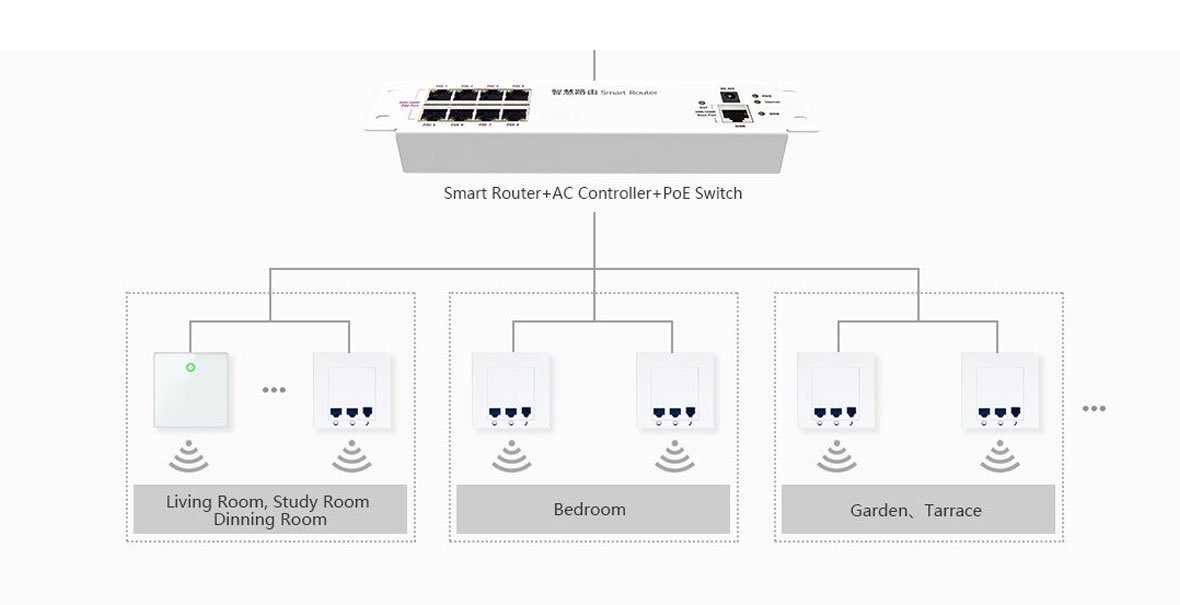

Network Topology

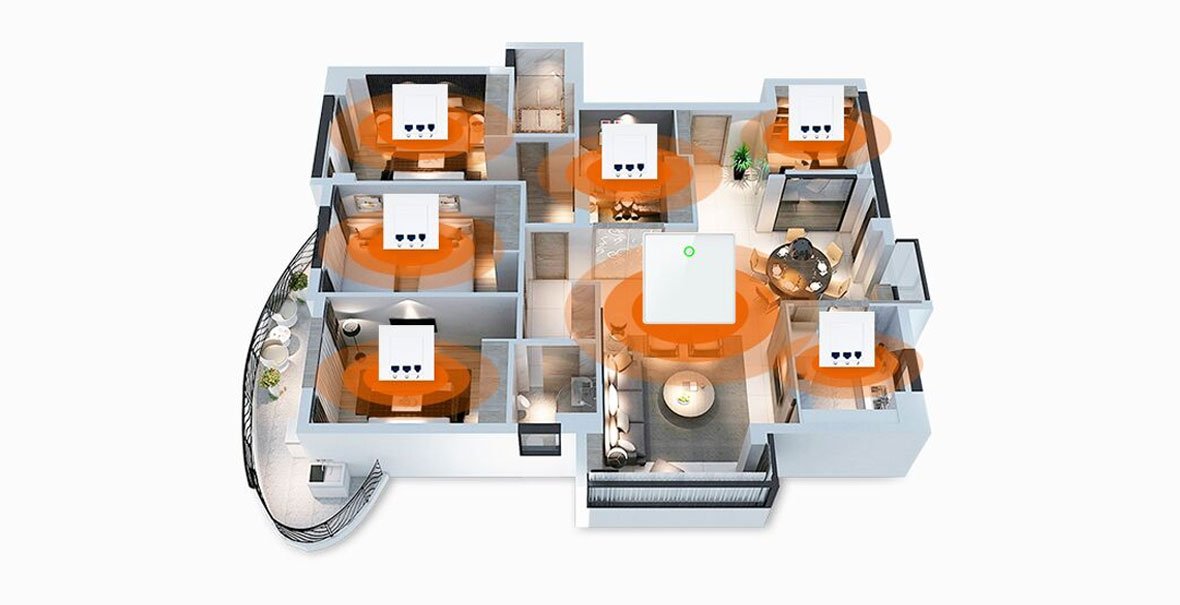

Installation

Feautures

  • Full Wi-Fi Coverage with Seamless Roaming Adopt Smart router+PoE Switch+ AC Controller+ Wireless Access Point, provide seamless wireless coverage for villa, family member or visitors can enjoy their real time entertainment freely even they are moving between different wireless access point coverage
  • Internet Behavior Control Support parental control, reasonable to regulate their kids Internet behavior, provide a green and healthy Internet environment. Besides that, it divide into family and visitor’s network, control a variety of application software, limit P2P, to manage user’s Internet behavior, protect the whole network security.
  • Centralized Configure and Remote Maintenance Work as AC Controller, assign IP address to each wireless AP, then zero configure wireless AP’s SSID, Password, channel… Plug and Play: Support cloud server remote maintenance, WeChat Banding, send network behavior’ s by
